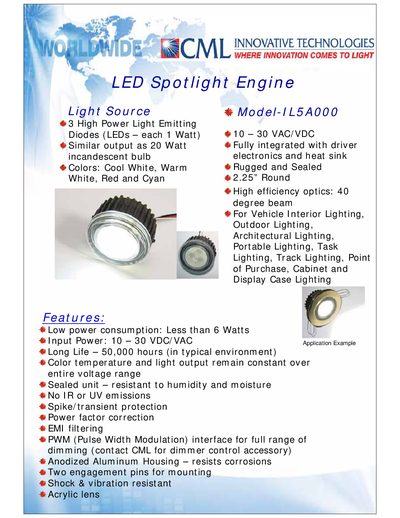

The CML IL5A000 is a LED spotlight from CML. It features low power consumption, long life, waterproof and moisture-proof, no infrared and ultraviolet radiation, and is suitable for vehicle interior lighting, outdoor lighting, architectural lighting, portable lighting, task lighting, track lighting, point of purchase, cabinet and display case lighting.
The I1L5A000 LED Spotlight Engine is a compact, high‑power LED module designed for vehicle interior, outdoor, architectural, and portable lighting applications. It integrates a driver, heat sink, and anodized aluminum housing, offering low power consumption (under 6 W) and a 40° beam angle.
Key specifications include multiple color options (Cool White, Warm White, Red, Cyan), a typical net weight of 150 g, operating temperature range of –40 °C to +55 °C, and a rated input of 10‑30 VDC/VAC with 500 mA current. The unit is sealed, shock‑ and vibration‑resistant, and features PWM dimming capability.
| Model | I1L5A000 |
|---|---|
| Input Power | 10‑30 VDC/VAC |
| Power Consumption | < 6 W |
| Lifetime | 50,000 hours |
| Beam Angle | 40° |
| Input Current | 500 mA @ 12 V |
| Net Weight | 150 g (5.3 oz) |
| Operating Temperature | -40 °C to +55 °C |
| Project Life | 60,000 hours (70% lumen maintenance) |
It consumes less than 6 watts of power.
It operates from –40 °C up to +55 °C.
The typical net weight is 150 g (5.3 oz).
