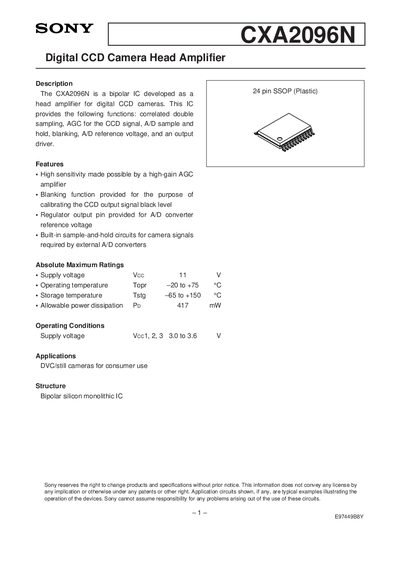

CXA2096N is a bipolar IC developed as a head amplifier for digital CCD cameras. This IC provides the following functions: correlated double sampling, AGC for the CCD signal, A/D sample and hold, blanking, A/D reference voltage, and an output driver.
The CXA2096N is a bipolar integrated circuit developed by SONY specifically as a head amplifier for digital CCD cameras. It integrates several key signal processing functions including correlated double sampling, automatic gain control (AGC) for the CCD signal, A/D sample and hold, blanking, an A/D reference voltage regulator, and an output driver.
| Supply Voltage (Vcc1, 2, 3) | 3.0 to 3.6 V |
|---|---|
| Operating Temperature (Topr) | -20 to +75 °C |
| Storage Temperature (Tstg) | -65 to +150 °C |
| Allowable Power Dissipation (Pp) | 417 mW |
| Package Type | 24 pin SSOP (Plastic) |
It is designed for DVC/still cameras intended for consumer use.
Yes, it has built-in sample-and-hold circuits required by external A/D converters.
It acts as a preblanking pulse input to calibrate the black level of the AGC output waveform.
