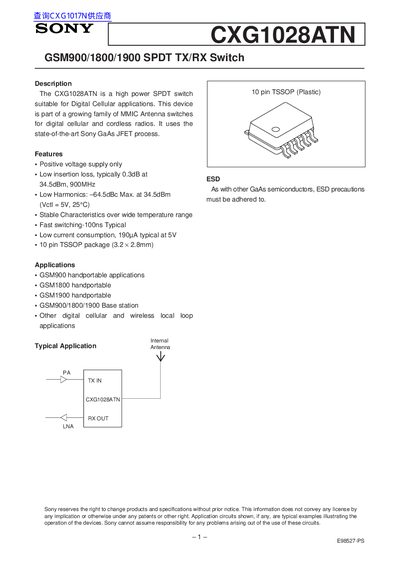

The CXG1028ATN is a high power SPDT switch suitable for Digital Cellular applications. This device is part of a growing family of MMIC Antenna switches for digital cellular and cordless radios. It uses the state-of-the-art Sony GaAs JFET process.
The CXG1028ATN is a high power SPDT switch designed for digital cellular and cordless radios, utilizing the state-of-the-art Sony GaAs JFET process. It features low insertion loss (typically 0.3dB at 34.5dBm), fast switching speed of 100ns typical, and low current consumption.
| Insertion loss (Typical) | 0.3dB at 34.5dBm, 900MHz |
|---|---|
| Switching Speed (Typical) | 100ns |
| Control Current (Typical) | 190uA at 5V |
| Operating Temperature Range | -35 to +85 °C |
| Package Type | 10 pin TSSOP (Plastic) |
The device supports GSM900, GSM1800, and GSM1900 handportable applications as well as base station applications.
The device uses a positive voltage supply only, with typical control voltages of 3V or 5V depending on the specific pin configuration.
