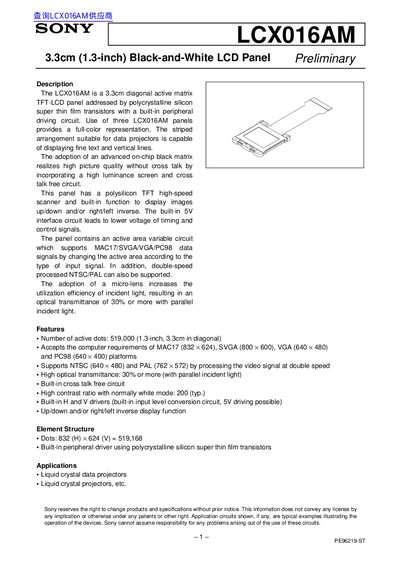

The LCX016AM is a 3.3cm diagonal active matrix TFT-LCD panel addressed by polycrystalline silicon super thin film transistors with a built-in peripheral driving circuit. Use of three LCX016AM panels provides a full-color representation. The striped arrangement suitable for data projectors is capable of displaying fine text and vertical lines. The adoption of an advanced on-chip black matrix realizes high picture quality without cross talk by incorporating a high luminance screen and cross talk free circuit. This panel has a polysilicon TFT high-speed scanner and built-in function to display images up/down and/or right/left inverse. The built-in 5V interface circuit leads to lower voltage of timing and control signals. The panel contains an active area variable circuit which supports MAC17/SVGA/VGA/PC98 data signals by changing the active area according to the type of input signal. In addition, double-speed processed NTSC/PAL can also be supported. The adoption of a micro-lens increases the utilization efficiency of incident light, resulting in an optical transmittance of 30% or more with parallel incident light.
The LCX016AM is a 3.3cm diagonal active matrix TFT-LCD panel using polycrystalline silicon transistors and built-in drivers. It supports multiple resolutions including VGA, SVGA, and MAC17, with double-speed NTSC/PAL support. Features include high optical transmittance (30%+), built-in cross-talk free circuitry, and a micro-lens array for improved light efficiency. The panel includes a 5V interface for lower voltage control signals and supports image inversion for display flexibility.
The datasheet details absolute maximum ratings, operating conditions, pin descriptions, input signal voltage requirements, clock timing, and waveform conditions. It also includes handling precautions for static charge, dust, and physical damage, as well as package dimensions and weight.
| Diagonal Size | 3.3cm (1.3-inch) |
|---|---|
| Active Dots | 519,000 |
| Resolution Support | MAC17 (832 x 624), SVGA (800 x 600), VGA (640 x 480), PC98 (640 x 400) |
| Optical Transmittance | 30% or more (with parallel incident light) |
| Contrast Ratio | 200 (typ.) |
| Weight | 7.6g |
It supports MAC17 (832 x 624), SVGA (800 x 600), VGA (640 x 480), and PC98 (640 x 400) resolutions.
It has an optical transmittance of 30% or more with parallel incident light.
The contrast ratio is 200 (typ.) with normally white mode.
