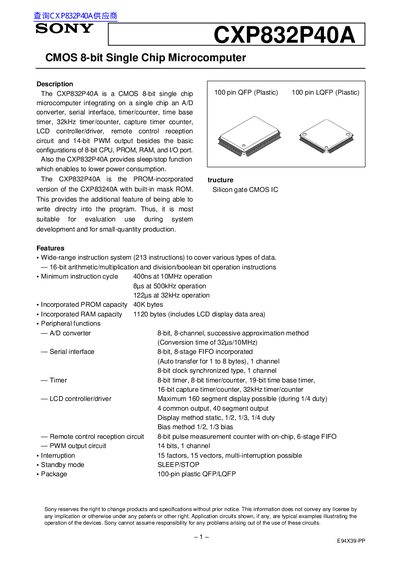

The CXP832P40A is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, capture timer counter, LCD controller/driver, remote control reception circuit and 14-bit PWM output besides the basic configurations of 8-bit CPU, PROM, RAM, and I/O port. Also the CXP832P40A provides sleep/stop function which enables to lower power consumption. The CXP832P40A is the PROM-incorporated version of the CXP83240A with built-in mask ROM. This provides the additional feature of being able to write directry into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
The CXP832P40A is a CMOS 8-bit single chip microcomputer that integrates on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, capture timer counter, LCD controller/driver, remote control reception circuit, and 14-bit PWM output. It also includes basic configurations of an 8-bit CPU, PROM, RAM, and I/O port.
| CPU Architecture | CMOS 8-bit single chip microcomputer |
|---|---|
| Instruction Set Size | 213 instructions |
| Minimum Instruction Cycle (10MHz) | 400ns |
| Incorporated PROM Capacity | 40K bytes |
| A/D Converter Resolution | 8-bit, 8-channel |
| LCD Controller Max Segments | 160 segments |
| Package Types | 100 pin QFP, 100 pin LQFP |
The minimum instruction cycle is 400ns when operating at 10MHz.
Yes, it is the PROM-incorporated version of the CXP83240A with built-in mask ROM.
The device is available in 100-pin plastic QFP and 100-pin LQFP packages.
