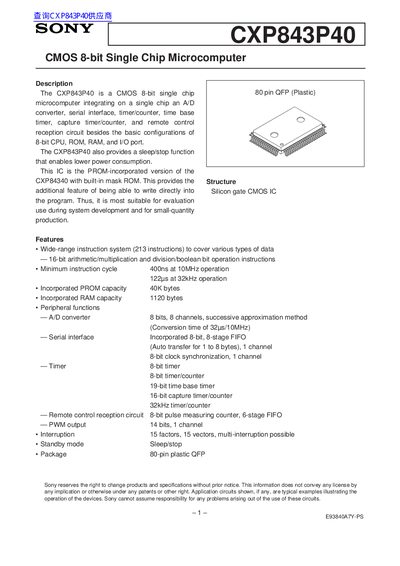

The CXP843P40 is a CMOS 8-bit single chip microcomputer that integrates an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, and remote control reception circuit, in addition to the basic configurations of an 8-bit CPU, ROM, RAM, and I/O port. The CXP843P40 also provides a sleep/stop function for lower power consumption. This IC is the PROM-incorporated version of the CXP84340 with built-in mask ROM, allowing direct writing into the program. It is most suitable for evaluation use during system development and for small-quantity production.
The document details the Sony CXP843P40, a CMOS 8-bit single chip microcomputer that integrates an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, and remote control reception circuit. It features a wide-range instruction system with 213 instructions and includes incorporated PROM capacity of 40K bytes.
The datasheet provides comprehensive technical specifications including pin assignments for Ports A through I, input/output circuit formats, recommended oscillation circuits, and package outline dimensions for the 80-pin plastic QFP structure.
| Instruction System | 213 instructions |
|---|---|
| Minimum Instruction Cycle | 400ns at 10MHz operation |
| A/D Converter Channels | 8 channels |
| Package Type | 80-pin plastic QFP |
The minimum instruction cycle is 400ns when operating at 10MHz.
The conversion time is 32 microseconds at 10MHz operation.
