ICX096AKE is a Sony infrared CCD sensor with high sensitivity and low dark current.

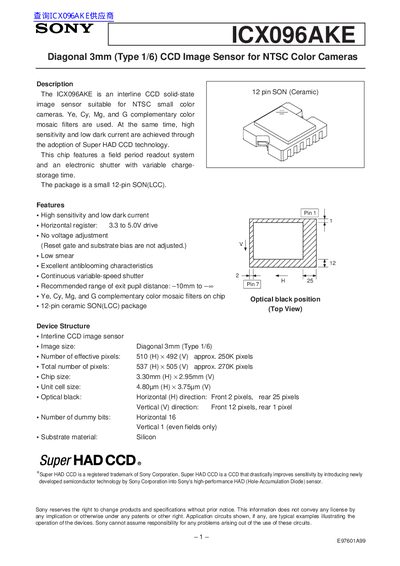

The document describes the Sony ICX096AKE, an interline solid-state CCD image sensor designed for NTSC color cameras. It utilizes Ye, Cy, Mg, and G complementary color mosaic filters and employs Super HAD CCD technology to achieve high sensitivity and low dark current.
Key specifications include a diagonal size of 3mm (Type 1/6) with approximately 250K effective pixels (510H x 492V). The device operates within a supply voltage range of 14.55V to 15.45V and features an electronic shutter with variable charge-storage time.
| Effective Pixels | 510 (H) x 492 (V) |
|---|---|
| Chip Size | 3.30mm (H) x 2.95mm (V) |
| Operating Temperature | -10 to +60 °C |
It adopts Super HAD CCD technology.
No, no voltage adjustment is needed as reset gate and substrate bias are not adjusted.
