This is a product manual for the Sony CXA2067S

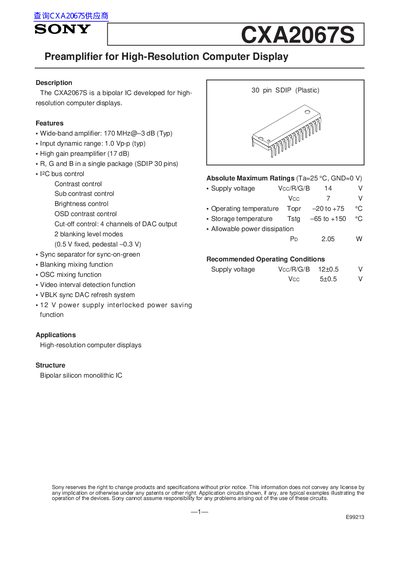

The document provides technical specifications and features for the CXA2067S, a wide-band amplifier integrated circuit developed specifically for high-resolution computer display applications. Key capabilities include contrast, sub-contrast, brightness, and OSD controls via an I2C bus interface.
Detailed information is provided regarding absolute maximum ratings, recommended operating conditions, pin descriptions, and the definitions of the 12C bus registers used to configure the device's functions such as gain control and blanking levels.
| Bandwidth | 170 MHz@-3 dB (Typ) |
|---|---|
| Input dynamic range | 1.0 Vp-p (typ) |
| Gain | High gain preamplifier (17 dB) |
| Package type | 30 pin SDIP (Plastic) |
| Supply voltage Vcc/R/G/B | 12 to 14 V |
| Operating temperature | -20 to +75 °C |
The slave receiver address is 40 (HEX).
It provides four channels of DAC output.
