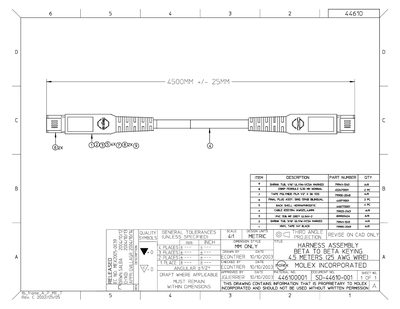

This document provides the bill of materials for a Molex harness assembly with beta‑to‑beta keying and a total length of 4.5 meters. It lists each component, part number, quantity, and material specifications required to build the harness.
The drawing also includes quality tolerances, dimensional notes, and revision information for manufacturing and inspection purposes. This manual is written in Japanese.
| Cable specification | IEEE1294 (AWG25) |
|---|---|
| Shrink tube size | 1/15* UL/VW‑1/CSA |
| Vinyl tape color | Black |
The cable is IEEE1294, AWG25.
