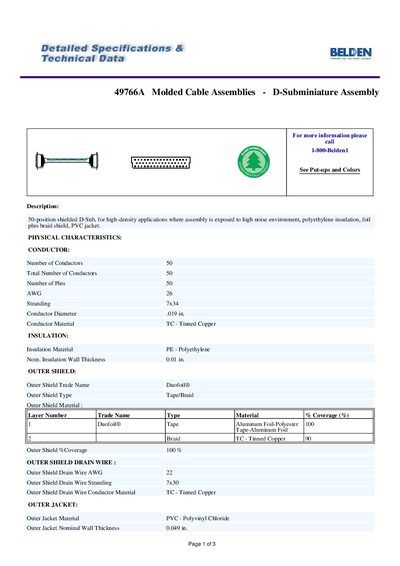

This 49766A Molded Cable Assemblies - D-Subminiature Assembly is manufactured by Belden, and is a 50-pin shielded D-Sub, suitable for high-density applications where the assembly is exposed to high noise environments, using polyethylene insulation, aluminum foil plus braid shield, and PVC jacket.
The 49766A is a high‑density, 50‑position shielded D‑Sub cable assembly designed for noisy environments. It features polyethylene insulation, a dual‑foil and braid outer shield, and a PVC jacket, providing robust EMI/RFI protection.
The assembly complies with UL Style 2919 (30 V, 80 °C), meets EU RoHS requirements, and includes detailed connector characteristics for both male and female ends, with point‑to‑point wiring and shield grounding to the connector shells.
| Outer Shield Trade Name | Duofoil® |
|---|---|
| Outer Shield Material | Aluminum Foil |
| Outer Shield Coverage | 100 % |
| Outer Shield Drain Wire AWG | 22 |
| Overall Nominal Diameter | .535 in. |
| Maximum Operating Voltage | 30 V RMS |
| UL Temperature Rating | 80 °C |
It is a 50‑position shielded D‑Sub assembly.
The maximum operating voltage is 30 V RMS.
Yes, it is EU RoHS compliant.
