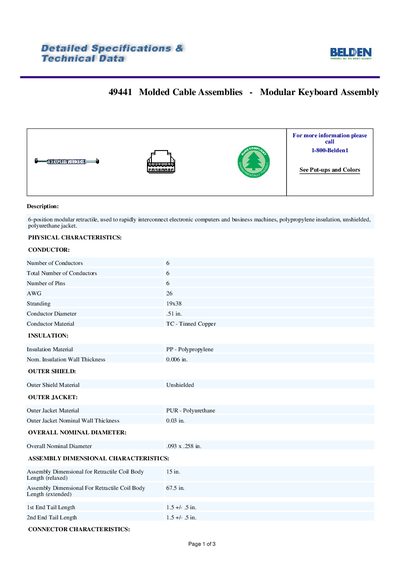

49441 Molded Cable Assemblies - Modular Keyboard Assembly is a 6-position modular retractile that is used to rapidly interconnect electronic computers and business machines. It is made with polypropylene insulation and an unshielded polyurethane jacket.
The Belden 49441 is a 6‑position modular retractile cable assembly designed for rapid interconnection of computers and business machines. It features a polypropylene insulation, unshielded construction, and a polyurethane outer jacket.
Key characteristics include tinned copper conductors, UL‑rated temperature and voltage limits, and compliance with EU RoHS and other environmental regulations.
| Connector type | Modular, 6‑position |
|---|---|
| Conductor material | TC - Tinned Copper |
| Insulation material | PP - Polypropylene |
| Outer jacket material | PUR - Polyurethane |
| UL temperature rating | 60°C (UL AWM Style 20197) |
| Maximum operating voltage | 30V (UL AWM Style 20197) |
The cable is rated for 30 V (UL AWM Style 20197).
It is rated for 60 °C (UL AWM Style 20197).
It uses a modular 6‑position connector.
