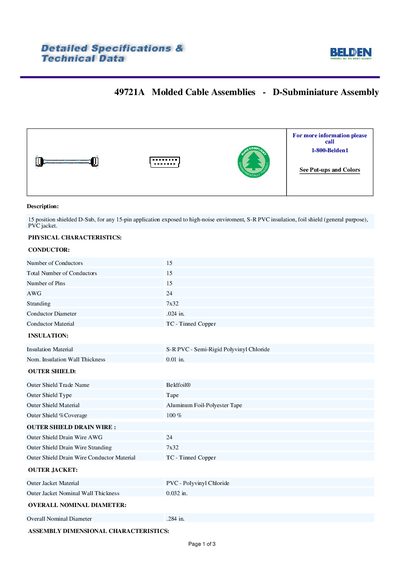

49721A Molded Cable Assemblies - D-Subminiature Assembly is a 15-pin shielded D-Sub cable assembly from Belden, with S-R PVC insulation, anti-interference aluminum foil shield and PVC outer jacket.
The 49721A is a 15‑position shielded D‑Sub molded cable assembly designed for high‑noise environments. It features semi‑rigid PVC insulation, a foil‑shielded jacket, and male connectors with detents for grounding.
Key specifications include a 10 ft. assembly length, UL 300 V RMS maximum operating voltage, 80 °C temperature rating, and compliance with UL AWM Style 2464, NEC, and EU RoHS standards. The cable is non‑plenum rated and includes detailed connector and mechanical characteristics.
| Positions / Pins | 15 |
|---|---|
| Length | 10 ft. |
| Insulation Material | S‑R PVC (Semi‑Rigid Polyvinyl Chloride) |
| Outer Shield Material | Aluminum Foil‑Polyester Tape |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Max Operating Voltage | UL 300 V RMS |
| UL Temperature Rating | 80°C |
| Plenum Rating | No |
The cable is rated for a maximum operating voltage of UL 300 V RMS.
No, the cable is not plenum rated.
The assembled cable length is 10 feet.
The cable has a UL temperature rating of 80 °C.
