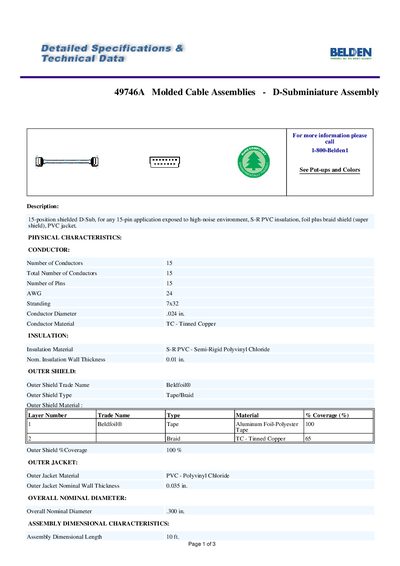

49746A Molded Cable Assemblies - D-Subminiature Assembly is a 15-position shielded D-Sub connector with S-R PVC insulation, foil plus braid shield (super shield), and PVC jacket.
The 49746A molded cable assembly is a 15‑position shielded D‑Sub connector designed for high‑noise environments. It features semi‑rigid PVC insulation, a foil‑plus‑braid outer shield, and a PVC jacket.
Key specifications include a 0.035 in. overall diameter, 10 ft. assembly length, UL‑rated 80 °C temperature, and a maximum operating voltage of 300 V RMS. The cable complies with UL AWM Style 2464, EU RoHS, and is non‑plenum rated.
| Assembly Length | 10 ft. |
|---|---|
| UL Temperature Rating | 80 °C (UL AWM Style 2464) |
| Maximum Operating Voltage | UL 300 V RMS (UL AWM Style 2464) |
| Plenum Rating | Non‑plenum (N) |
| EU RoHS Compliance | Yes |
The maximum operating voltage is UL 300 V RMS (UL AWM Style 2464).
No, the cable is non‑plenum rated.
