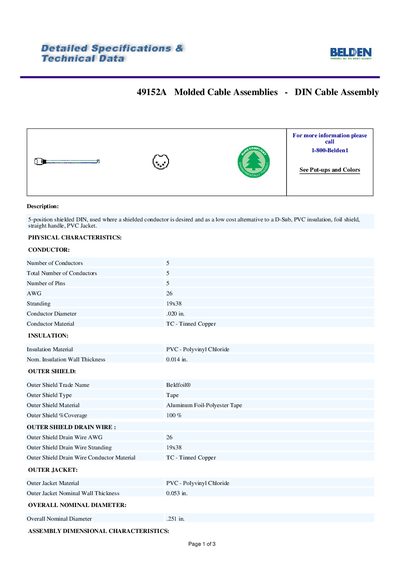

This document describes the 49152A molded cable assembly, which is a cable assembly for DIN connectors. It has 5 conductors and 5 pins, with conductors made of 26AWG tinned copper material, PVC insulation, and aluminum foil-polyester tape outer shield. The cable assembly is a low-cost alternative to D-Sub connectors.
The 49152A is a 5‑position shielded DIN molded cable assembly designed as a low‑cost alternative to a D‑Sub connector. It features a PVC jacket, foil shield, and straight handle, suitable for moderate‑noise environments.
Key data include a 5‑conductor tinned‑copper core, PVC insulation, Beldfoil® aluminum‑foil shield with 100 % coverage, UL‑rated 80 °C temperature limit, and a maximum operating voltage of 300 V RMS. The product complies with UL Style 2464, EU RoHS, and other relevant standards.
| Conductor Material | TC - Tinned Copper |
|---|---|
| Insulation Material | PVC - Polyvinyl Chloride |
| Outer Shield Trade Name | Beldfoil® |
| Outer Shield Material | Aluminum Foil-Polyester Tape |
| Overall Nominal Diameter | 0.053 in. |
| UL Temperature Rating | 80 °C (UL AWM Style 2464) |
| Maximum Operating Voltage | 300 V RMS (UL AWM Style 2464) |
| UL Flame Test | VW‑1 (Cable only) |
The cable is rated for a maximum operating voltage of 300 V RMS (UL AWM Style 2464).
It is rated for 80 °C according to UL AWM Style 2464.
