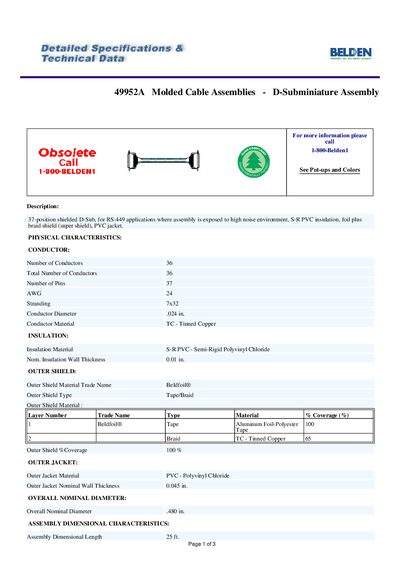

This document describes the features and characteristics of the 49952A Molded Cable Assemblies - D-Subminiature Assembly. The product is a 37-position shielded D-Sub connector designed for RS-449 applications exposed to high noise environments. It features S-R PVC insulation, foil plus braid shield (super shield), and PVC jacket.
The Belden 49952A molded cable assembly provides a 37‑position shielded D‑Sub connector suitable for RS‑449 applications where high electromagnetic interference is expected. It features 24‑AWG tinned copper conductors, semi‑rigid PVC insulation, a dual‑layer super shield (Beldfoil® tape and copper braid), and a PVC outer jacket.
Key specifications include a 25‑ft assembly length, UL temperature rating of 80 °C, 300 V RMS operating voltage, and compliance with EU RoHS and other regulatory standards. The shield is connected to the connector shell and pin 1 for effective grounding.
| Number of Conductors | 36 |
|---|---|
| Number of Pins | 37 |
| Conductor Material | TC - Tinned Copper |
| Outer Shield Material | Beldfoil® Tape Aluminum Foil‑Polyester |
| Outer Shield Type | Tape/Braid |
| Outer Jacket Material | PVC - Polyvinyl Chloride |
| Overall Nominal Diameter | 0.080 in. |
| Assembly Length | 25 ft. |
| UL Temperature Rating | 80 °C |
| Maximum Operating Voltage | 300 V RMS |
| EU RoHS Compliant | Yes |
It uses a super shield consisting of Beldfoil® tape and a copper braid (Tape/Braid).
The cable is rated for 80 °C according to UL specifications.
Each D‑Sub connector has 37 pins.
