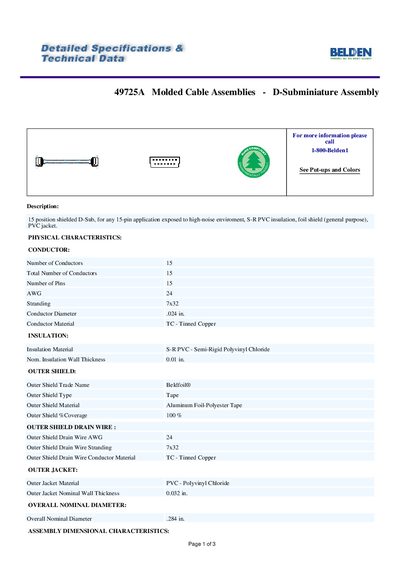

Belden 49725A Molded Cable Assemblies - D-Subminiature Assembly Handbook
This document provides detailed technical data for the Belden 49725A Molded Cable Assemblies, specifically designed as a 15-position shielded D-Subminiature assembly. It is intended for applications exposed to high-noise environments and features S-R PVC insulation with a foil shield.
Read onlineBelden 49725A specifications
| Connector Type | D-Sub |
|---|---|
| Number of Contacts/positions | 15 |
| Gender (First End) | Male |
| Gender (Second End) | Female |
| Overmold Color | Chrome |
| UL Temperature Rating | 80°C |
| Max. Operating Voltage | 300 V RMS |
Source: Belden 49725A Molded Cable Assemblies - D-Subminiature Assembly Handbook
All Belden 49725A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the Belden 49725A RoHS compliant?
Yes, the product is EU RoHS Compliant.
From: Belden 49725A Molded Cable Assemblies - D-Subminiature Assembly Handbook
What is the maximum operating voltage for the Belden 49725A cable assembly?
The maximum operating voltage is 300 V RMS according to UL Style 2464.
From: Belden 49725A Molded Cable Assembly Detailed Specifications & Technical Data
Does the Belden 49725A meet RoHS compliance?
Yes, the product complies with the EU RoHS Directive (2002/95/EC).
From: Belden 49725A Molded Cable Assembly Detailed Specifications & Technical Data
