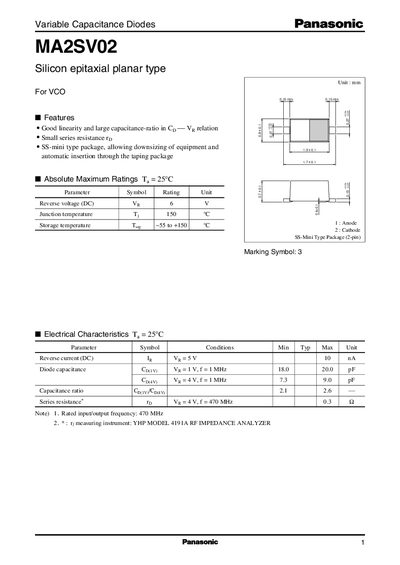

This datasheet mainly introduces the characteristics of MA2SV02 variable capacitance diodes
The MA2SV02 is a silicon epitaxial planar variable capacitance diode intended for VCO applications. It offers good linearity, a large capacitance‑ratio, low series resistance, and is supplied in an SS‑Mini 2‑pin package for compact designs.
The datasheet lists absolute maximum ratings, typical electrical parameters at 25 °C, and performance curves for capacitance and forward voltage versus temperature. Marking and package information are also provided.
| Reverse voltage (DC) | 6 V |
|---|---|
| Junction temperature | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Reverse current (typ) | 10 nA |
| Capacitance ratio (typ) | 2.6 |
| Package type | SS‑Mini 2‑pin |
| Marking symbol | 3 |
The maximum reverse voltage is 6 V.
It is supplied in an SS‑Mini 2‑pin package.
