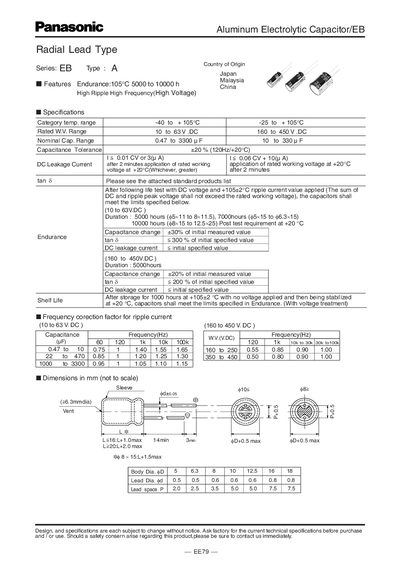

The EB series are radial‑lead aluminum electrolytic capacitors made by Panasonic. They operate over a wide temperature range and are offered in low‑voltage (10‑63 V DC) and high‑voltage (160‑450 V DC) versions with various capacitance values.
The document provides detailed tables of dimensions, lead spacing, packaging, endurance (5000‑10000 h at 105 °C) and part numbers for each size, as well as leakage current and tolerance data.
| Operating Temperature Range | -40 °C to +105 °C |
|---|---|
| Rated Voltage (Low Voltage) | 10 V DC to 63 V DC |
| Nominal Capacitance (Low Voltage) | 0.47 pF to 3300 pF |
| Capacitance Tolerance | +20 % (120 Hz/+20 °C) |
| Endurance | 5000 h to 10000 h at 105 °C |
| DC Leakage Current | I = 0.01 CV or 3 µA |
| Lead Space | 20 mm (standard) |
They are rated for –40 °C to +105 °C operation.
Low‑voltage versions are 10 V DC to 63 V DC, and high‑voltage versions are 160 V DC to 450 V DC.
They are specified for an endurance of 5000 h to 10000 h at 105 °C.
The tolerance is +20 % measured at 120 Hz and +20 °C.
