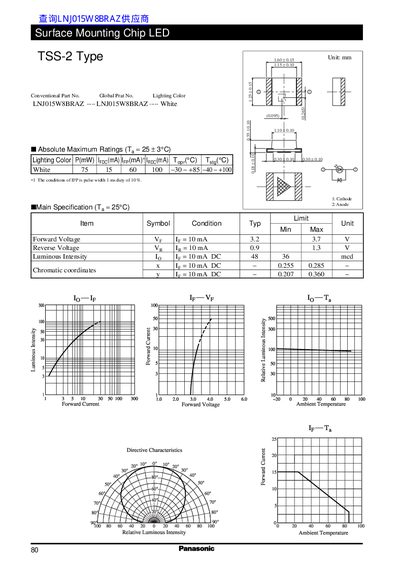

Panasonic TSS-2 Type Surface Mounting Chip LED Datasheet

This datasheet provides the specifications of LNJ015W8BRAZ, including maximum working current, working voltage, working temperature, etc.

Brand: Panasonic
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 61 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: D3F1E3D34C9E154F9A347A9F6DC8E811
PDF: Panasonic TSS-2 Type Surface Mounting Chip LED Datasheet PDF

About this manual

This document is a technical datasheet for the Panasonic TSS-2 Type Surface Mounting Chip LED. It provides part numbers, physical dimensions in millimeters, and absolute maximum ratings including forward current and operating temperature ranges.

The datasheet also lists main specification parameters such as forward voltage, reverse voltage, luminous intensity, and chromatic coordinates measured at a test current of 10mA DC. It includes application notes regarding export regulations and usage precautions for standard versus special applications.

What's inside

Surface Mounting Chip LED
Absolute Maximum Ratings
Main Specification
Directive Characteristics
Precautions in using
Export permit requirements

Specifications

Lighting Color	White
Forward Current (IF)	15 mA
Reverse Voltage (VR)	0.9 V
Luminous Intensity (IV)	48 mcd
Chromatic coordinates x	0.255 - 0.285

Frequently asked questions

What is the test current for specifications?

The main specification values are measured at a forward current (Ip) of 10mA DC.

What are the absolute maximum operating temperatures for the TSS-2 Type LED?

The device operates between -30°C and +85°C, with a storage temperature range of -40°C to +100°C.
