2SC5077, 2SC5077A are triple diffusion planar type silicon NPN transistors with high breakdown voltage and high speed switching.

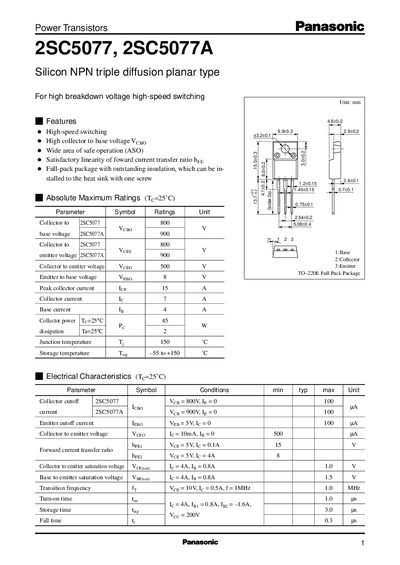

This document is a technical datasheet for the Panasonic 2SC5077 and 2SC5077A, which are silicon NPN triple diffusion planar type power transistors. These devices are designed specifically for high breakdown voltage and high-speed switching applications.
The datasheet provides comprehensive electrical characteristics, including collector cutoff current, forward current transfer ratio, and transition frequency up to 10 MHz. It also details absolute maximum ratings such as a peak collector current of 15 A and a junction temperature limit of 150 °C.
| Transistor Type | Silicon NPN triple diffusion planar type |
|---|---|
| Peak collector current | 15 A |
| Collector power dissipation (Ta=25°C) | 45 W |
| Junction temperature | 150 °C |
| Transition frequency (fy) | 10 MHz |
The peak collector current (Tep) is rated at 15 A.
The maximum junction temperature (Tj) is 150 °C.
Yes, the device features a full-pack package that can be installed to the heat sink with one screw.
