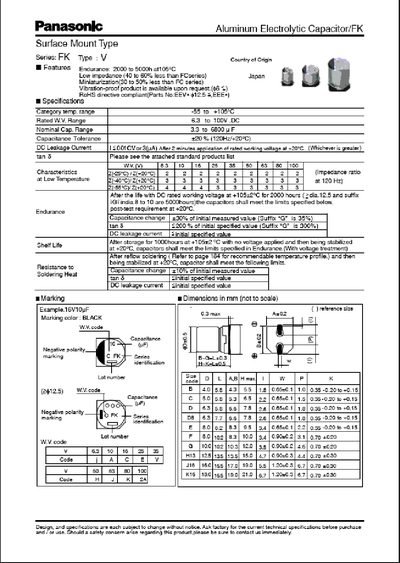

This document provides information on the specifications and characteristics of the Aluminum Electrolytic Capacitor/FK design. It emphasizes that the specifications and design are subject to change without notice, and advises contacting the factory for the current technical specifications before purchasing and/or using. It also urges immediate contact in case of safety concerns.
The FK series from Panasonic are surface‑mount aluminum electrolytic capacitors offering low impedance (40‑60% lower than PO series) and miniaturized size (30‑50% smaller than FC series). They are available in a wide voltage range and are RoHS compliant.
The document provides detailed tables of case sizes, capacitance values, impedance at 100 kHz, DC leakage current, endurance limits (2000‑5000 h at 105 °C) and recommended reflow profiles for soldering.
| Rated voltage range | 6.3 V to 100 V |
|---|---|
| Capacitance range | 9.3 pF to 6800 pF |
| DC leakage current | LSQ00CV after 2 min at rated voltage |
| Endurance (life test) | 2000‑5000 h at 105 °C |
| Low impedance advantage | 40‑60 % lower than PO series |
| Miniaturization advantage | 30‑50 % smaller than FC series |
| RoHS compliance | Compliant with RoHS directive |
The FK series capacitors are rated for voltages from 6.3 V up to 100 V.
Capacitance values range from 9.3 pF to 6800 pF.
They are specified for an endurance of 2000 to 5000 hours at 105 °C.
Yes, the document states RoHS directive compliance for the series.
