2SC4655 is a NPN type transistor produced by Toshiba Corporation, mainly used for RF amplification, oscillation, mixing and IF of FM/AM radios. The transistor uses SS-Mini packaging, which is small and can be automatically inserted for assembly.

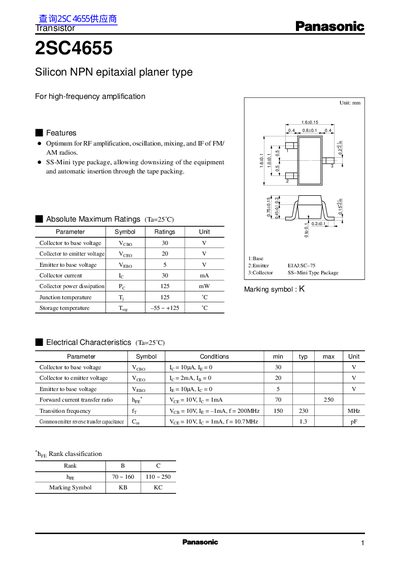

This document is a technical datasheet for the Panasonic 2SC4655, a Silicon NPN epitaxial planer type transistor. It is specifically optimized for high-frequency amplification, oscillation, mixing, and intermediate frequency (IF) use in FM/AM radios.
The device features an SS-Mini type package that allows for equipment downsizing and automatic insertion via tape packing. The datasheet provides absolute maximum ratings, electrical characteristics including transition frequency up to 230 MHz, and various performance graphs regarding collector power dissipation, current transfer ratios, and capacitance.
| Transistor Type | Silicon NPN epitaxial planer type |
|---|---|
| Package Type | SS-Mini type package |
It is optimum for RF amplification, oscillation, mixing, and IF in FM/AM radios.
It uses an SS-Mini type package.
