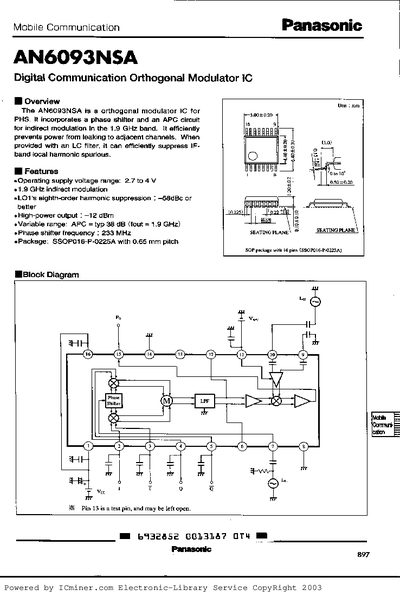

The AN6093NSA is an orthogonal modulator IC designed for PHS mobile communication. It incorporates a phase shifter and an APC circuit for indirect modulation in the 1.9 GHz band, providing efficient suppression of power leakage to adjacent channels.
Key features include a supply voltage range of 2.7‑4 V, high‑power output of –12 dBm, a 233 MHz phase‑shifter frequency, and an SSOP016‑P‑0225A package with 0.65 mm pitch. Detailed electrical characteristics, pin descriptions, and absolute maximum ratings are provided for design reference.
| Operating supply voltage range | 2.7 to 4 V |
|---|---|
| High‑power output | -12 dBm |
| Phase shifter frequency | 233 MHz |
| Package | SSOP016-P-0225A, 0.65 mm pitch |
The device operates from 2.7 V to 4 V.
The high‑power output is –12 dBm.
It is supplied in an SSOP016‑P‑0225A package with 0.65 mm pitch.
The phase shifter operates at 233 MHz.
