The NC7SP04 is a single inverter from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V.
The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) TinyLogic series, designed for ultra‑low power consumption in the 0.9 V to 3.6 V supply range. It features a minimal number of inverter stages and an output buffer to achieve very low static and dynamic power.

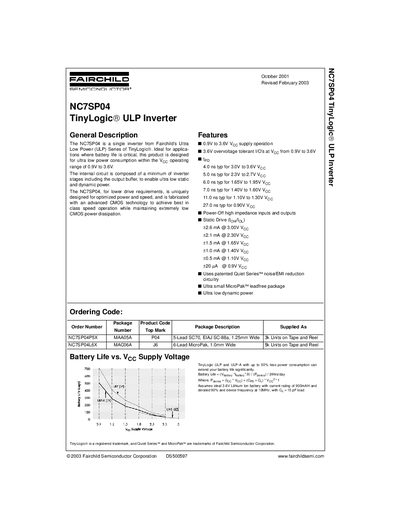

The datasheet includes electrical characteristics such as propagation delay, leakage currents, and drive capability, as well as mechanical information like package dimensions, tape‑and‑reel specifications, and ordering codes for SC70 and MicroPak packages.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V–3.6 V) | 4.0 ns |
| Output Drive Current @ 3.00 V | 42.6 mA |
| Input Leakage Current | 0.90 µA to 3.60 µA |
| Package Types | 5‑Lead SC70 (MAA05A) and 6‑Lead MicroPak (MACO6A) |
The device operates from 0.9 V to 3.6 V.
Typical propagation delay is 4.0 ns when powered between 3.0 V and 3.6 V.
The part is available in a 5‑Lead SC70 package (MAA05A) and a 6‑Lead MicroPak package (MACO6A).
The device can source up to 42.6 mA at a 3.00 V supply.
