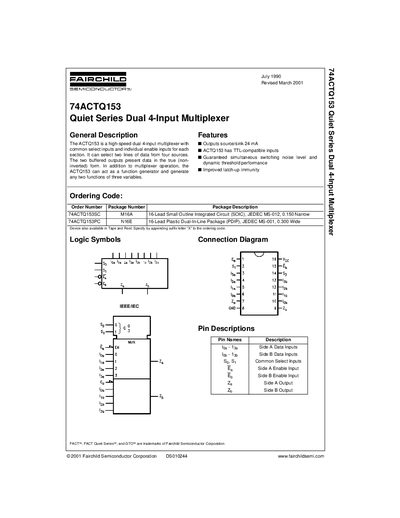

The 74ACTQ153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the ACTQ153 can act as a function generator and generate any two functions of three variables.
The document describes the ACTQ153 as a high-speed dual 4-input multiplexer featuring common select inputs and individual active-LOW enable inputs for each section. It can select two lines of data from four sources, presenting buffered outputs in true (non-inverted) form. Additionally, it functions as a function generator capable of generating any two functions of three variables.
| Outputs source/sink current | 24 mA |
|---|---|
| Supply Voltage (Vcc) | 4.5V to 5.5V |
| Storage Temperature (Tstg) | -65°C to +150°C |
| Package Description | 16-Lead Small Outline Integrated Circuit (SOIC) |
Yes, in addition to multiplexer operation, the ACTQ153 can act as a function generator and generate any two functions of three variables.
The guaranteed limit is 4.76V when Vcc is 5.5V.
