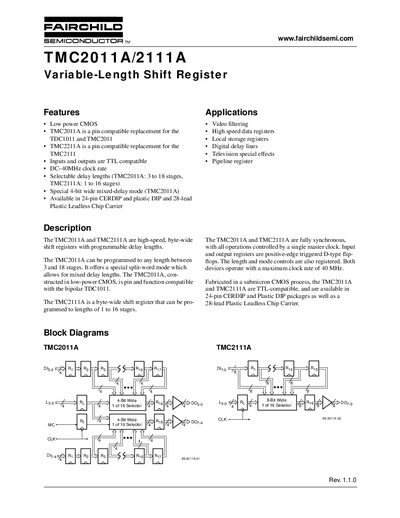

TMC2011A/TMC2111A are high-performance, byte-wide shift registers with programmable delay lengths. The TMC2011A can be programmed to any length between 3 and 18 stages. It offers a special split-word mode which allows for mixed delay lengths. The TMC2011A, constructed in low-power CMOS, is pin and function compatible with the bipolar TDC1011. The TMC2111A is a byte-wide shift register that can be pro-grammed to lengths of 1 to 16 stages. The TMC2011A and TMC2111A are fully synchronous, with all operations controlled by a single master clock. Input and output registers are positive-edge triggered D-type flip-flops. The length and mode controls are also registered. Both devices operate with a maximum clock rate of 40 MHz. Fabricated in a submicron CMOS process, the TMC2011A and TMC2111A are TTL-compatible, and are available in 24-pin CERDIP and Plastic DIP packages.
The TMC2011A and TMC2111A are high‑speed, byte‑wide shift registers with programmable delay lengths. The TMC2011A supports 3‑18 stages, while the TMC2111A supports 1‑16 stages, and both operate from a single +5 V supply with a maximum clock rate of 40 MHz. They are TTL‑compatible and offered in 24‑pin CERDIP, plastic DIP and 28‑lead PLCC packages.
The handbook contains functional descriptions, pin assignments, electrical and timing characteristics, mechanical dimensions, absolute maximum ratings, operating conditions, and ordering information. It also includes application notes such as video filtering, digital delay lines, and pipeline registers.
| Supply Voltage | 4.75 V – 5.25 V |
|---|---|
| Maximum Clock Frequency | 40 MHz |
| Selectable Delay Lengths | TMC2011A: 3‑18 stages; TMC2111A: 1‑16 stages |
| Operating Temperature Range | -20 °C to 110 °C |
| Package Types | 24‑pin CERDIP, plastic DIP, 28‑lead PLCC |
The devices operate up to a 40 MHz clock rate.
Both parts operate from a single +5 V supply.
The TMC2011A can be programmed for 3 to 18 stages.
They are offered in 24‑pin CERDIP, plastic DIP, and 28‑lead PLCC packages.
