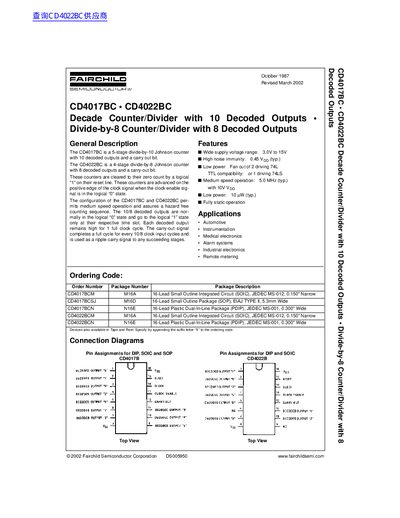

CD4017BC/CD4022BC is a 5/4 stage divider.
This document provides technical specifications for the CD4017BC, a 5-stage divide-by-10 Johnson counter with decoded outputs, and the CD4022BC, a 4-stage divide-by-8 Johnson counter. Both devices feature wide supply voltage ranges from 3.0V to 15V and are designed for medium-speed operation up to 5.0 MHz.
| Supply Voltage Range | 3.0V to 15V |
|---|---|
| Operating Temperature Range | -55°C to +125°C |
| Maximum Clock Frequency | 5.0 MHz |
The CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit.
The CD4022BC is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit.
These devices are suitable for automotive, instrumentation, medical electronics, alarm systems, industrial electronics, and remote metering.
