The FAN7388 is a monolithic three half-bridge gate-drive IC designed for high-voltage, high-speed driving MOSFETs and IGBTs operating up to +600V.

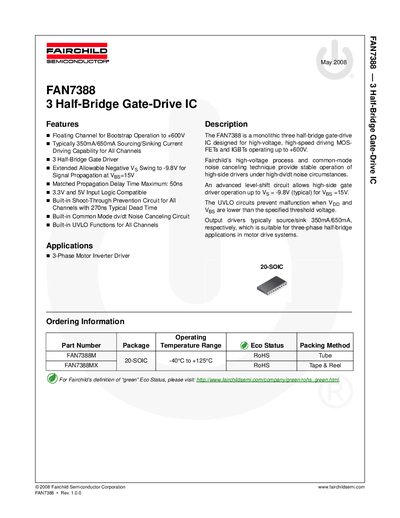

The FAN7388 is a monolithic three half‑bridge gate‑drive IC designed for high‑voltage, high‑speed MOSFET and IGBT drivers up to +600 V. It features floating bootstrap channels, built‑in shoot‑through prevention, UVLO protection, and 3.3 V/5 V input‑logic compatibility.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, pin definitions, mechanical dimensions, and typical application circuits for motor‑drive and inverter designs.
| Maximum Floating Supply Voltage | +600 V |
|---|---|
| Source Current per Channel | 350 mA (typical) |
| Sink Current per Channel | 650 mA (typical) |
| Maximum Propagation Delay | 50 ns |
| Input Logic Compatibility | 3.3 V and 5 V |
| Typical Dead Time | 270 ns |
The device supports a floating supply voltage up to +600 V.
Each channel can source about 350 mA and sink about 650 mA.
The matched propagation delay time is limited to 50 ns.
Yes, the FAN7388 accepts both 3.3 V and 5 V input logic.
