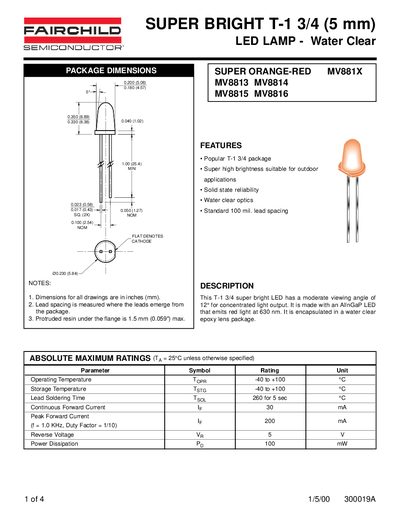

This is a super bright T-1 3/4 (5 mm) LED lamp with a moderate viewing angle of 12° for concentrated light output. It is made with an AllnGaP LED that emits red light at 630 nm and is encapsulated in a water clear epoxy lens package.
The Super Bright T-1 3/4 LED lamp is offered in a water‑clear epoxy lens package with a popular T‑1 3/4 (5 mm) form factor. It delivers high brightness suitable for outdoor applications, solid‑state reliability, and a moderate 12° viewing angle.
The document lists key specifications such as operating temperature (‑40 °C to +100 °C), continuous forward current (30 mA), peak forward current (200 mA), reverse voltage (5 V), power dissipation (100 mW), typical luminous intensity (up to 3500 mcd), forward voltage (typical 2.4 V), peak wavelength (630 nm), and standard 100 mil lead spacing.
| Package length | 0.200 in (5.08 mm) |
|---|---|
| Package width | 0.180 in (4.57 mm) |
| Lead spacing | 100 mil |
| Operating temperature range | -40 °C to +100 °C |
| Continuous forward current | 30 mA |
| Peak forward current | 200 mA |
| Reverse voltage | 5 V |
| Power dissipation | 100 mW |
| Typical luminous intensity (MV8813) | 940 mcd |
| Typical forward voltage (20 mA) | 2.4 V |
| Peak wavelength | 630 nm |
| Viewing angle | 12° |
The lamp can operate from –40 °C up to +100 °C.
The typical forward voltage is about 2.4 V.
The LED emits light with a peak wavelength of 630 nm.
The package uses a standard 100 mil lead spacing.
