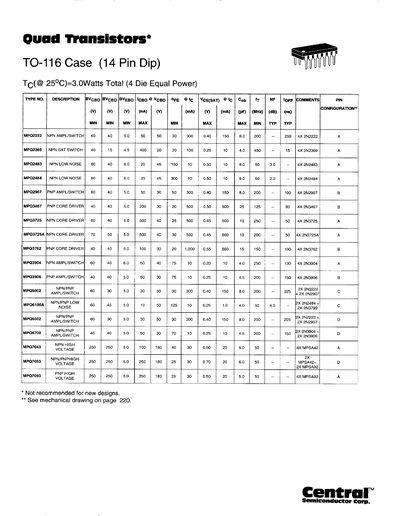

The document describes a family of quad transistors packaged in a TO‑116 case with a 14‑pin DIP layout. Both NPN and PNP variants are listed, each containing four identical dies that share the total power rating.
The sheet provides key electrical parameters such as total power dissipation (3.0 W at 25 °C), voltage and current limits, and gain values for each part number. A note states that these devices are not recommended for new designs, and a mechanical drawing is referenced on page 220.
| Total Power Dissipation (at 25 °C) | 3.0 W |
|---|---|
| Package | TO-116 (14‑pin DIP) |
| Number of Transistor Dies | 4 |
