CZRB5926-CZRB5956 are surface mount zener diodes manufactured by Comchip. They have a rated voltage range of 11-200 volts and a rated power of 1.5 watts. The product has low inductance, low profile and built-in strain relief.

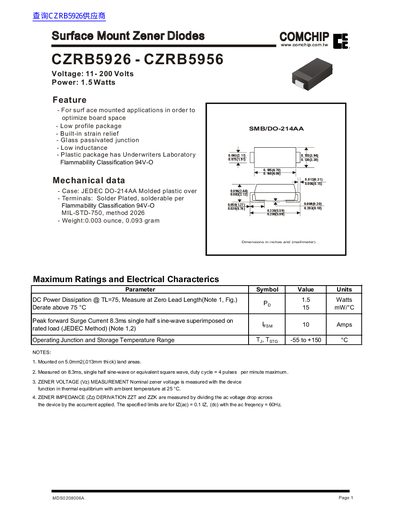

The CZRB5926‑5956 series are surface‑mount Zener diodes offered by COMCHIP in a low‑profile SMB/DO‑214AA package. They are designed for space‑constrained applications and feature a glass‑passivated junction with built‑in strain relief.
Key specifications include a voltage range of 11 V to 200 V, 1.5 W maximum power dissipation, operation from –55 °C to +150 °C, and a peak forward surge current of 10 A. Detailed electrical characteristics for each part number are listed in the datasheet tables.
| Voltage range | 11‑200 V |
|---|---|
| Maximum power dissipation | 1.5 W |
| Package type | SMB/DO‑214AA low‑profile surface‑mount |
| Weight | 0.003 oz (0.093 g) |
| Operating temperature range | -55 °C to +150 °C |
| Zener impedance (typical for CZRB5926) | 5.5 Ω |
They cover a voltage range from 11 V up to 200 V.
The maximum power dissipation is 1.5 W.
They are supplied in a low‑profile SMB/DO‑214AA surface‑mount package.
The devices operate from –55 °C to +150 °C.
