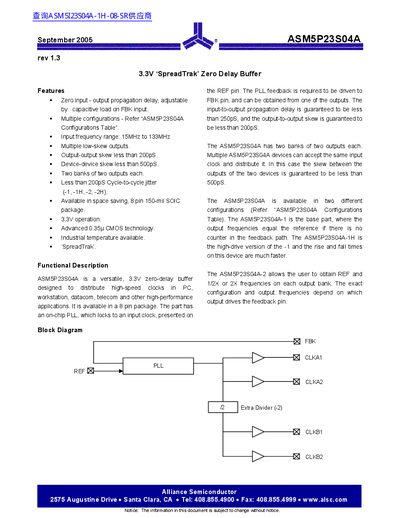

The ASM5P23S04A is a versatile 3.3V zero-delay buffer designed to distribute high-speed clocks in PC, workstation, datacom, telecom, and other high-performance applications. It features zero input-output propagation delay, multiple low-skew outputs, and multiple configurations. The output-output skew is less than 200pS, and the device-device skew is less than 500pS. It operates on advanced 0.35µ CMOS technology and is available for industrial temperature use.
The ASM5P23S04A is a versatile 3.3 V zero‑delay buffer designed for high‑speed clock distribution in PCs, workstations, datacom, telecom and other high‑performance applications. It features adjustable propagation delay, multiple configurations, low‑skew outputs, and spread‑spectrum compatibility.
The device is offered in an 8‑pin 150‑mil SOIC package, operates from 3.0 V to 3.6 V, and is available in both commercial (0 °C‑70 °C) and industrial (‑40 °C‑85 °C) temperature ranges. Detailed electrical and switching characteristics, absolute maximum ratings, and ordering information are provided.
| Input frequency range | 15 MHz to 133 MHz |
|---|---|
| Device‑to‑device skew | < 500 ps |
| Supply voltage (operating) | 3.0 V to 3.6 V |
| Absolute max supply voltage | -0.5 V to +7.0 V |
| Operating temperature (commercial) | 0 °C to 70 °C |
| Operating temperature (industrial) | -40 °C to 85 °C |
| Package type | 8‑pin 150‑mil SOIC |
The input‑to‑output propagation delay is guaranteed to be less than 250 ps.
It has two banks of two outputs each, for a total of four outputs.
The device is offered in an 8‑pin 150‑mil SOIC package.
The absolute maximum supply voltage to ground is –0.5 V to +7.0 V.
