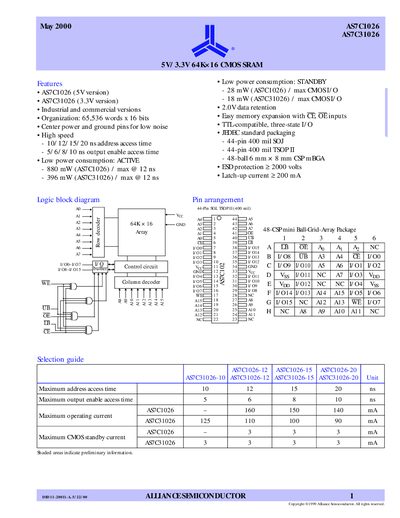

This document describes the features and characteristics of Alliance Semiconductor's AS7C1026 and AS7C31026 CMOS SRAM products, including operating voltage, memory capacity, access time, power consumption, interface compatibility, etc.
The AS7C1026 (5V) and AS7C31026 (3.3V) are high-performance CMOS Static Random Access Memory (SRAM) devices organized as 65,536 words x 16 bits. They are designed for applications requiring fast data access, low power consumption, and simple interfacing, featuring equal address access times of 10/12/15/20 ns.
| Organization | 65,536 words x 16 bits |
|---|---|
| Supply Voltage (AS7C1026) | 4.5V to 5.5V |
| Supply Voltage (AS7C31026) | 3.0V to 3.6V |
| Max Address Access Time | 10/12/15/20 ns |
| Max Output Enable Access Time | 5/6/8/10 ns |
| Active Power (AS7C1026) | 880 mW max @ 12 ns |
| Standby Power (CMOS) | 2.0V data retention |
The devices are organized as 65,536 words x 16 bits.
The maximum address access times are 10, 12, 15, or 20 ns depending on the specific part number.
Yes, both AS7C1026 and AS7C31026 are offered in industrial and commercial versions.
