This document describes the features and characteristics of YG862C10R (100V / 10A), including low IR, low VF, and center tap connection. The product is suitable for high frequency operation, DC-DC converters, AC adapters, and more.

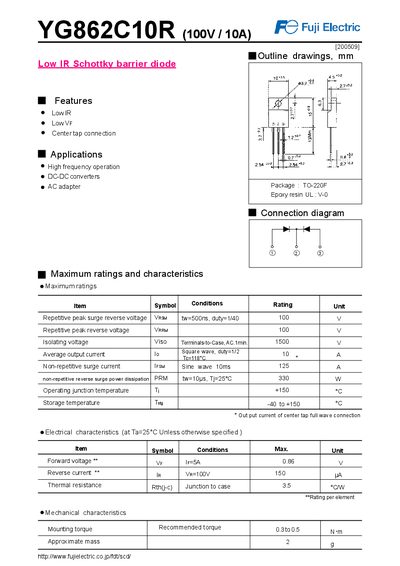

This document is a technical datasheet for the Fuji Electric YG862C10R, a center-tap connected rectifier diode rated at 100V reverse voltage and 10A average output current. It features low IR and low VF characteristics suitable for high-frequency operations in DC-DC converters and AC adapters.
| Average output current | 10 A |
|---|---|
| Forward voltage (max) | 0.86 V |
| Reverse current (max) | 150 mA |
| Operating junction temperature | +150 °C |
The device supports an average output current of 10 A when the case temperature is maintained at 78°C.
The rectifier can operate with a junction temperature up to +150 °C.
The recommended mounting torque is between 0.3 and 0.5 N·m.
