FUJI 6MBI 15L-120

6MBI25L-120 is a product of collmer semiconductor,inc.

Brand: FUJI
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 138 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: C14F24FD3CD1808EF91EFADBACD24C5E

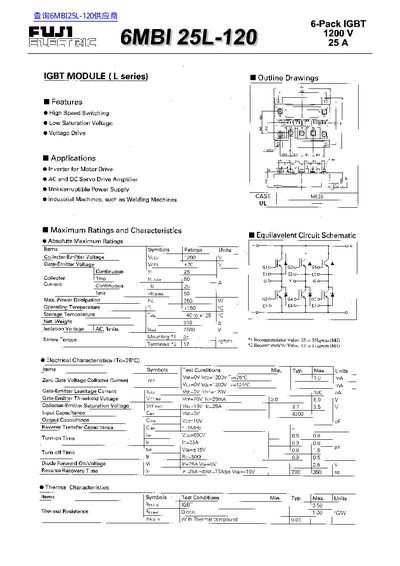

PDF: FUJI 6MBI 15L-120 PDF

About this manual

This document is a datasheet for the Collmer Semiconductor 6MBI25L-120, a 6-Pack IGBT module. The device is designed for high-speed switching with low saturation voltage and operates with voltage drive. It is intended for applications including motor drive inverters, AC and DC servo drive amplifiers, uninterruptible power supplies, and industrial machines such as welding machines.

What's inside

Features
Applications
Maximum Ratings and Characteristics
Equivalent Circuit Schematic
Absolute Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Outline Drawings

Specifications

Collector-Emitter Voltage	1200 V
Gate-Emitter Voltage	+20 V
Continuous Current	25 A
Pulse Current	50 A
Max. Power Dissipation	250 W
Operating Temperature	+150 °C
Storage Temperature	-40 to +125 °C
Isolation Voltage	2500 V

Frequently asked questions

What are the recommended mounting screw torque values?

The recommended value is 25 to 35 kgf*cm for M5 screws.

What is the recommended terminal torque value?

The recommended value is 13 to 17 kgf*cm for M4 terminals.
