This document describes the absolute maximum ratings, electrical characteristics, and external dimensions of the 2SK1178 MOSFET model.

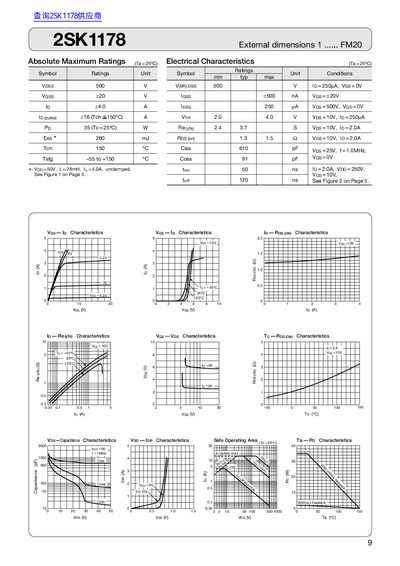

This document provides the key electrical parameters, absolute maximum ratings and characteristic curves for the FUJI 2SK1178 power transistor. It includes detailed tables of voltage, current, capacitance and power ratings.
The datasheet also lists the device's external dimensions, safe operating area, thermal limits and typical performance graphs, allowing designers to evaluate suitability for their circuits. This manual is written in Japanese.
| Maximum Drain‑Source Voltage (Vpss) | 500 V |
|---|---|
| Maximum Source‑Source Voltage (Vess) | +20 V |
| Input Capacitance (Ciss) | 610 pF |
| Output Capacitance (Coss) | 91 pF |
| Operating Temperature Range (Tstg) | -55 °C to +150 °C |
The maximum drain‑source voltage is 500 V.
It can operate from –55 °C up to +150 °C.
