The document describes the absolute maximum ratings and electrical characteristics of an electronic product. The product is model 2SK1177, but the brand is not mentioned. It has a drain-source voltage of 500V and a drain current of 250µA. Additionally, it features a threshold voltage of 2.0-4.0V and a power dissipation of 30W.

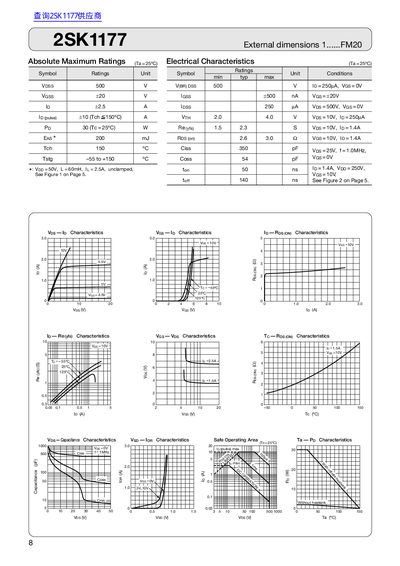

This document provides the key electrical characteristics, absolute maximum ratings, and external dimensions of the FUJI 2SK1177 semiconductor component. It includes detailed tables for voltage limits, current capabilities, capacitance values, and power dissipation.
The datasheet also presents safe‑operating‑area curves and characteristic graphs that help designers evaluate the device under various temperature and bias conditions. This manual is written in Japanese.
| Emitter‑Source Voltage (V_ES) | +20 V |
|---|---|
| Pulse Drain Current (I_D(pulse)) | 10 A |
| Power Dissipation (P_D) | 30 W |
| Input Capacitance (C_iss) | 350 pF |
| Output Capacitance (C_oss) | 54 pF |
It can dissipate up to 30 W at a case temperature of 257 °C.
The device can handle a pulse drain current of 10 A.
