DTD723YE / DTD723YM is a NPN type digital transistor produced by ROHM company, which has the characteristics of low voltage drop and built-in bias resistors.
The DTD723YE and DTD723YM are NPN epitaxial planar silicon transistors that incorporate built‑in thin‑film bias resistors, providing low saturation voltage and reduced parasitic effects. Their structure allows easy inverter circuit design without external input resistors.

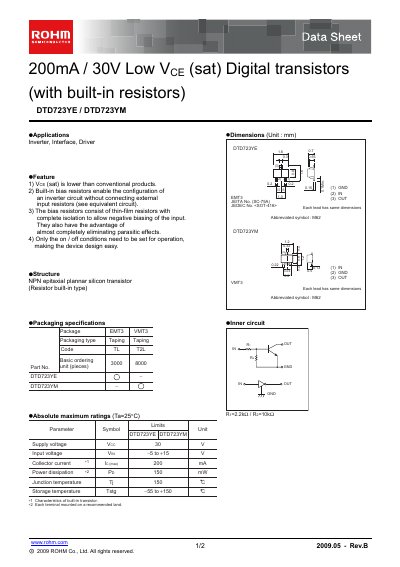

These devices are intended for inverter, interface and driver applications and are supplied in EMT3 or VMT3 surface‑mount packages. The datasheet lists absolute maximum ratings, electrical characteristics, and typical application circuits.
| Supply voltage VEO | 30 V |
|---|---|
| Input voltage VIN | 5 to +15 V |
| Junction temperature Tj | 150 °C |
| Storage temperature | -55 to +150 °C |
| Resistance ratio Re/Rt | 3.6 – 5.5 |
| Package type | EMT3 / VMT3 |
They are offered in EMT3 and VMT3 surface‑mount packages.
