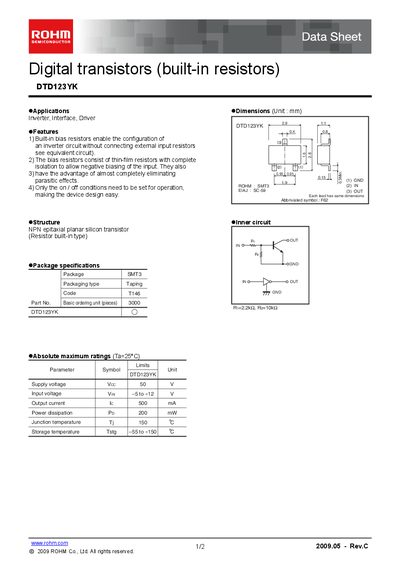

DTD123YK is a digital transistor produced by ROHM. It features built-in bias resistors that allow you to configure an inverter circuit without connecting external input resistors. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on / off conditions need to be set for operation, making the device design easy.
The DTD123YK is a digital transistor with integrated bias resistors, designed for inverter, interface and driver applications. Built‑in thin‑film resistors allow negative biasing and reduce parasitic effects, simplifying circuit design.
Key specifications include a 50 V supply rating, 500 mA output current, 200 mW power dissipation, and operation over a wide temperature range. Package information, absolute maximum ratings, and detailed electrical characteristic curves are provided for designers.
| Supply voltage (VEO) | 50 V |
|---|---|
| Output current (IC) | 500 mA |
| Power dissipation (PP) | 200 mW |
| Junction temperature (TJ) | 150 °C |
| Storage temperature (TSTG) | -55 to +150 °C |
| Built‑in resistor values | R_i = 2.2 kΩ, R2 = 10 kΩ |
The maximum supply voltage is 50 V.
The device can deliver up to 500 mA of output current.
The built‑in resistors are 2.2 kΩ (R_i) and 10 kΩ (R2).
It can be stored from –55 °C to +150 °C.
