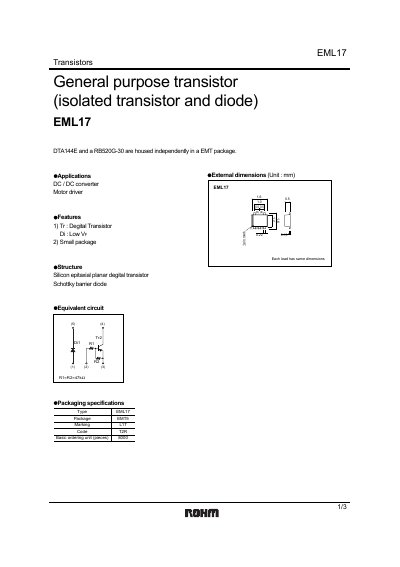

This document is the electronic component manual of EML17 product, which introduces the product features, structure, external dimensions, package, application scenarios, absolute maximum ratings, electrical characteristics, etc.
The EML17 is a general‑purpose isolated transistor that incorporates a digital transistor and a low‑VF Schottky diode in a single EMT package. It is intended for use in DC‑DC converters, motor drivers, and other electronic equipment.
The document lists package dimensions, absolute maximum ratings, and detailed electrical characteristics such as forward/reverse voltages, power dissipation, transition frequency, and gain curves. An appendix contains legal and export‑control notices.
| Maximum collector‑emitter voltage (VCE) | -10 V |
|---|---|
| Transition frequency (fT) | 250 MHz |
The transition frequency is specified as 250 MHz.
