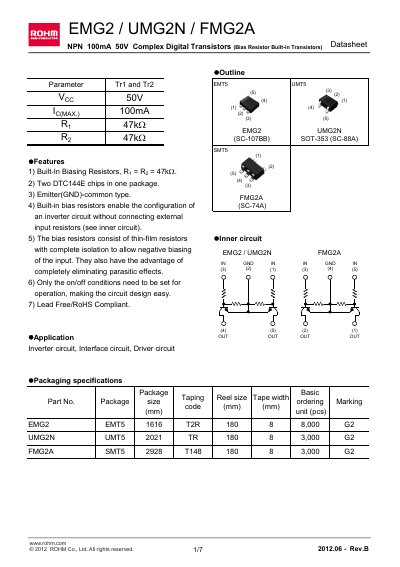

EMG2 / UMG2N / FMG2A is an NPN 100mA 50V complex digital transistor produced by ROHM Co., Ltd. It features built-in bias resistors and is suitable for inverter circuits, interface circuits, and driver circuits.
The EMG2, UMG2N, and FMG2A are NPN transistors that incorporate built‑in bias resistors (Ry = Re = 47 kΩ) and are offered in compact SOT‑353 (SC‑88A) or SC‑74A packages. They are designed for inverter, interface, and driver circuits, providing easy on/off control and eliminating the need for external bias resistors.
The datasheet lists absolute maximum ratings, electrical characteristics such as a 50 V supply rating, 30 mA output current, and up to 100 mA collector current, as well as power dissipation limits (150 mW for EMG2/UMG2N, 300 mW for FMG2A). Detailed dimension tables for each package and application circuit examples are also provided.
| Supply voltage (Voc) | 50 V |
|---|---|
| Input voltage range | -10 to +40 V |
| Output current (lo) | 30 mA |
| Collector current max | 100 mA |
| Power dissipation (EMG2/UMG2N) | 150 mW |
| Power dissipation (FMG2A) | 300 mW |
| Built‑in bias resistor | 47 kΩ |
| Package (EMG2/UMG2N) | SOT‑353 (SC‑88A) |
| Package (FMG2A) | SC‑74A |
| Maximum junction temperature | 150 °C |
The maximum supply voltage (Voc) is 50 V.
Each device includes built‑in bias resistors of 47 kΩ.
