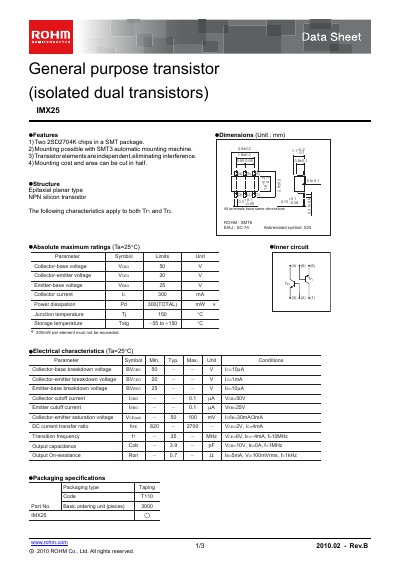

This document introduces the features and characteristics of the IMX25 general purpose dual transistor product launched by ROHM. The product has two 2SD2704K chips, and can be mounted using an SMT3 automatic mounting machine. The transistor elements are independent, eliminating interference. Mounting cost and area can be cut in half.
This datasheet describes the ROHM IMX25 isolated dual transistor, a general‑purpose semiconductor device. It lists features, dimensions, and the internal structure of the component, and includes the standard ROHM branding and copyright information.
The document contains absolute maximum ratings, detailed electrical characteristics, and packaging specifications such as the Taping format (code T110, 3000‑piece ordering unit). It also provides characteristic curves, measurement circuit diagrams, and a legal notice covering usage, export, and liability.
| Collector‑emitter voltage (Vceo) | 20 V |
|---|---|
| Emitter‑base voltage (Vebo) | 25 V |
| Collector current (Ic) | 300 mA |
| Junction temperature (Tj) | 150 °C |
| Packaging type | Taping (Code T110, 3000 pcs) |
The maximum collector current is 300 mA.
The IMX25 is supplied in a Taping format, code T110, with a basic ordering unit of 3000 pieces.
