EMD6 / UMD6N / IMD6A is a dual digital transistor launched by ROHM Semiconductor. It has a simple structure and high reliability.

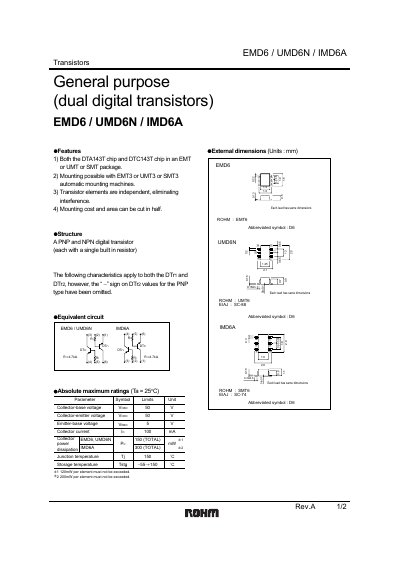

This datasheet provides the key specifications for the ROHM EMD6, UMD6N and IMD6A bipolar transistors. It lists absolute maximum ratings, electrical characteristics, and package dimensions for each device variant.
The document also includes typical application circuits, characteristic curves, and notes on usage limits, as well as legal and export‑control information for the products. This manual is written in Chinese.
| Collector‑base voltage (VCBO) | 50 V |
|---|---|
| Junction temperature (Tj) | 150 °C |
| Power dissipation (PC) – EMD6/UMD6N | 150 mW |
