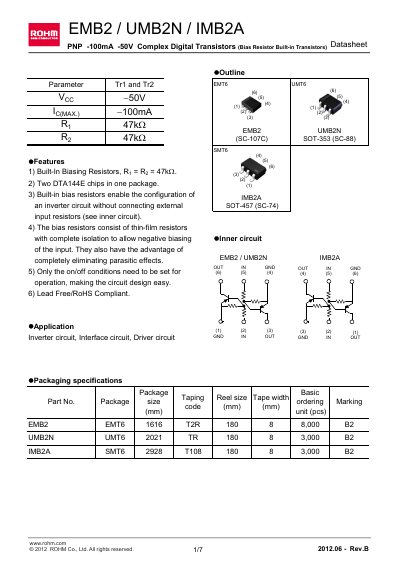

This datasheet provides a detailed description of the features, applications, package size, typical electrical characteristics, packaging specifications, absolute maximum operating conditions, typical application circuits of EMB2/UMB2N/IMB2A.
The IMB2A is a PNP transistor with built‑in bias resistors (R1 = R2 = 47 kΩ) that enables inverter or driver circuits without external resistors. It features thin‑film bias resistors with isolation, RoHS compliance, and a compact SOT‑6 (SMT6) package.
The document lists absolute maximum ratings, electrical characteristics, dimension drawings for the package, and packaging specifications (tape‑and‑reel). A notice section outlines usage restrictions, export requirements, and liability information.
| Supply voltage (VEE) | –50 V |
|---|---|
| Input voltage (VIN) | –40 V to +10 V |
| Output current (IO) | –30 mA |
| Collector current (IC max) | –100 mA |
| Power dissipation | 150 mW (total) |
| Junction temperature (TJ) | 150 °C |
| Storage temperature range | –55 °C to +150 °C |
| Package type | SMT6 (2928) tape‑and‑reel |
| RoHS compliance | Lead Free / RoHS compliant |
The maximum supply voltage is –50 V.
The IMB2A is offered in an SMT6 (2928) package, supplied on tape‑and‑reel.
Yes, the device is Lead Free and RoHS compliant.
