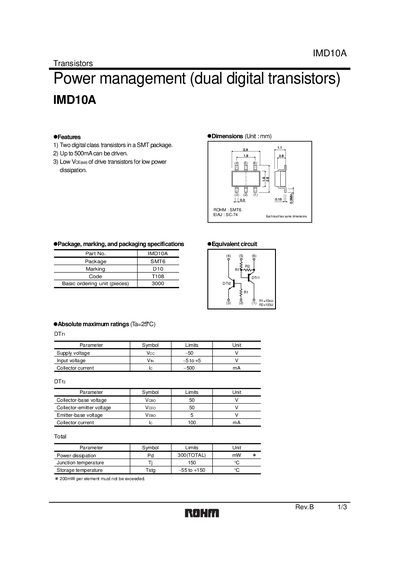

IMD10A is a ROHM digital class dual transistor device with high drive capability and low power consumption, capable of driving 500mA of current.
The IMD10A is a dual digital transistor offered in an SMT6 package with a marking of DIO RI ir. It can handle up to 500 mA collector current, supports a supply voltage of 50 V, and features a typical transition frequency of 200 MHz. Absolute maximum ratings, such as a junction temperature of 150 °C and power dissipation of 300 mW, are listed along with detailed electrical characteristics.
The document includes application notes and cautions, advising designers of safety‑critical equipment (e.g., medical or aerospace) to consult ROHM sales representatives before use. Contact information for ROHM support and sales offices is provided at the end of the file.
| Package | SMT6 |
|---|---|
| Supply voltage (Vce) | 50 V |
| Input voltage (Vin) | -5 V to +5 V |
| Collector current (Ic) | 500 mA |
| Collector‑emitter voltage (Vceo) | 50 V |
| Power dissipation (Pd) | 300 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature (Tstg) | -55 °C to +150 °C |
| Transition frequency (fT) | 200 MHz |
| Input resistance (Ri) | 100 kΩ (typical) |
| DC current gain (hFE) | 68 (typical) |
The IMD10A can handle a collector current of up to 500 mA.
The device is rated for a supply voltage of 50 V.
It is supplied in an SMT6 surface‑mount package.
The document advises consulting ROHM’s sales representative before using the part in medical, aerospace, or other high‑reliability equipment.
