IMD16A is a dual digital transistor produced by ROHM. It is packaged in SMT, with a power supply voltage range of -50~-12V and an output current range of 5~500mA. It has the advantages of low supply voltage saturation voltage and low power consumption.
The IMD16A is a dual digital class transistor offered in an SMT6 (SC‑74) package. It features two digital transistors in a single package and can drive up to 500 mA of current.

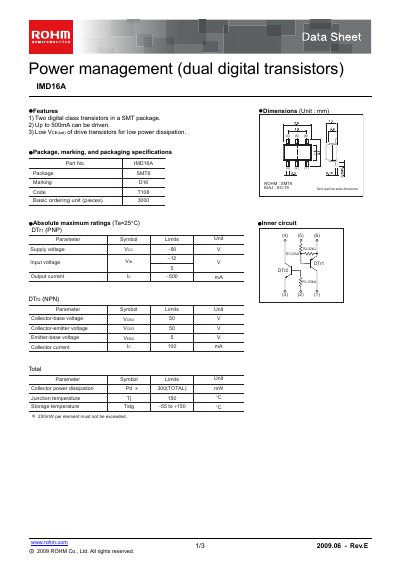

The datasheet lists absolute maximum ratings, electrical characteristics, and typical application curves. Key parameters include a 50 V supply voltage, 300 mW total power dissipation, and operation over a wide temperature range.
| Supply voltage (Voc) | 50 V |
|---|---|
| Output current (Ic) | 500 mA |
| Collector‑emitter voltage (Vceo) | 50 V |
| Emitter‑base voltage (Veso) | 5 V |
| Power dissipation (Pd) | 300 mW total |
| Junction temperature (Tj) | 150 °C |
| Storage temperature (Tsig) | -55 °C to +150 °C |
| Package | SMT6 (SC‑74) |
The device can drive up to 500 mA of output current.
Supply voltage is 50 V, collector‑base voltage 50 V, collector‑emitter voltage 50 V, and emitter‑base voltage 5 V.
It is supplied in an SMT6 (SC‑74) surface‑mount package.
The total power dissipation must not exceed 300 mW.
