The document describes the features and characteristics of the C&K CL Series Single Pole Power Rocker Switches, including optional switch indicators and different mounting styles.

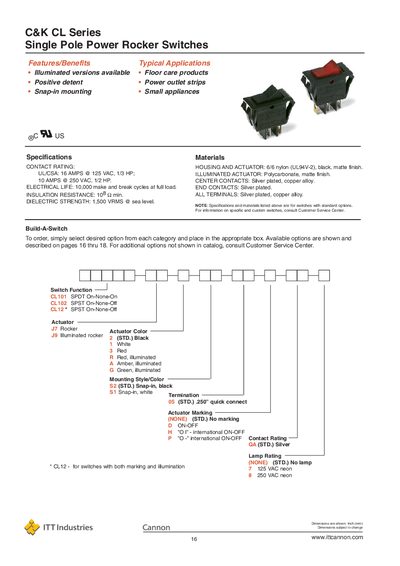

This document provides a technical overview of the C&K CL Series Single Pole Power Rocker Switches manufactured by ITT Industries. It highlights key benefits such as positive detent action, snap-in mounting, and availability in illuminated versions for various applications including floor care products and power outlet strips.
The catalog details specific switch functions (SPDT On-None-On and SPST On-None-Off), actuator options like rockers and illuminated variants, and different colors. It also includes dimensional drawings for panel mounting and snap-in styles, along with contact ratings and material specifications.
| Housing and Actuator Material | 6/6 nylon (UL94-2), black, matte finish |
|---|---|
| Contact Rating (Standard) | 16 AMPS @ 125 VAC, 1/3 HP |
| Contact Rating (High Voltage) | 10 AMPS @ 250 VAC, 1/2 HP |
| Electrical Life | 10,000 make and break cycles at full load |
| Insulation Resistance | 10^8 Ohm min |
| Dielectric Strength | 1,500 VRMS @ sea level |
The series includes CL101 for SPDT On-None-On and CL102/CL12 for SPST On-None-Off.
Yes, illuminated versions are available with actuators in red, amber, or green.
The switches offer snap-in mounting (black or white) and panel mounting options.
