Siemens BB 639C Silicon Variable Capacitance Diode Datasheet

The BB 639C is a silicon variable capacitance diode from Infineon, which is suitable for tuning of extended frequency band in VHF TV / VTR tuners.

Brand: Siemens
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 33 KB
Published: 05 June, 2012
Updated: 30 September, 2023
Models: BB 639, BB 639C
MD5 checksum: 8C617CE4AE52631465ECA46E214B0675
PDF: Siemens BB 639C Silicon Variable Capacitance Diode Datasheet PDF

About this manual

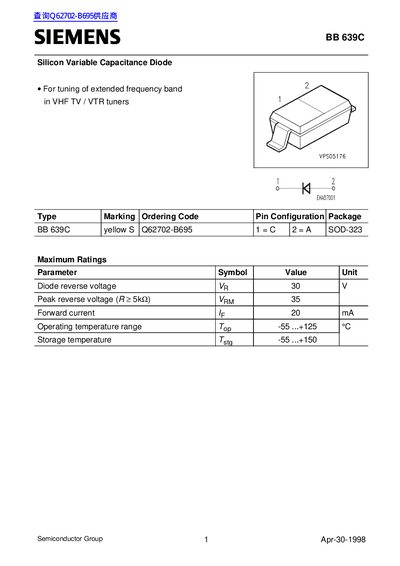

This document is a technical datasheet for the Siemens BB 639C, a silicon variable capacitance diode designed for tuning extended frequency bands in VHF TV and VTR tuners. The device features an SOD-323 package with yellow marking.

The datasheet provides comprehensive electrical characteristics including DC reverse current at various temperatures, AC capacitance values across different voltages and frequencies, and series resistance/inductance parameters. It also includes graphical data for diode capacitance versus voltage and reverse current versus temperature.

What's inside

Maximum Ratings
Electrical Characteristics
DC characteristics
AC characteristics
Capacitance matching
Series resistance
Package Information
Ordering Code

Specifications

Peak reverse voltage (Vam)	35 V
Forward current	20 mA
Operating temperature range	-55 ... +125 °C
Reverse current (Va = 30V)	10 nA

Frequently asked questions

What is the ordering code for the BB 639C?

The ordering code is Q62702-B695.

What is the maximum reverse voltage rating for this diode?

The maximum rated reverse voltage is 30 V.

What is the operating temperature range of the BB 639C?

It operates between -55 and +125 °C.

How much forward current can this diode handle continuously?

The maximum forward current is 20 mA.
