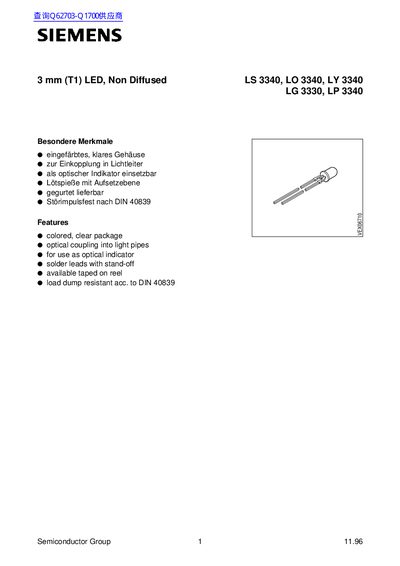

The LS 3340, LO 3340, LY 3340 LG 3330, LP 3340 VEX06710 series are a range of non-diffused 11.96 3 mm (T1) LEDs. This series of products features: colored, clear package, optical coupling into light pipes, for use as optical indicator, solder leads with stand-off, available taped on reel, load dump resistant acc. to DIN 40839.
This document is a technical datasheet for the Siemens Semiconductor Group's series of 3 mm (T1) non-diffused LEDs. The product line includes LS, LO, LY, LG, and LP models available in colors such as super-red, orange, yellow, green, and pure-green.
The datasheet provides detailed electrical and optical characteristics, including forward voltage, reverse current, luminous intensity, and viewing angles. It also lists maximum ratings for operating temperature, junction temperature, and surge current, along with package dimensions and cathode identification marks.
| Operating temperature range | -55... +100 C |
|---|---|
| Junction temperature | + 100 C |
| Forward current | 40 mA |
| Surge current | 0.5 A |
| Reverse voltage | Va |
| Power dissipation (Ty < 25°C) | 140 mW |
| Thermal resistance Junction / air | 400 K/W |
Yes, they are load dump resistant according to DIN 40839.
The devices operate within a temperature range of -55 to +100 °C.
These models have a maximum power dissipation of 140 mW.
Each package weighs approximately 0.15 g.
