This product is a N-channel enhanced logic level SIPMOS power transistor, with a maximum voltage of 55V, a maximum current of 20A, a switching loss of 0.07 ohm, and a TO-220AB package.

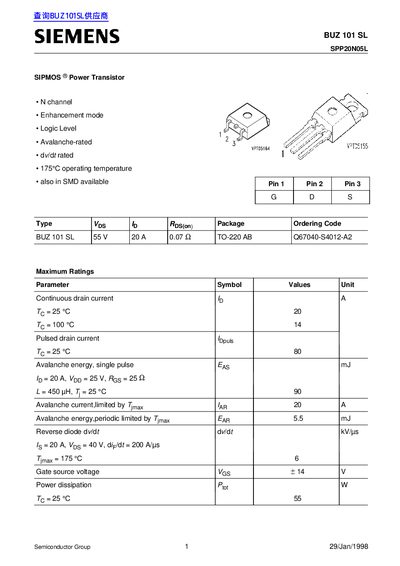

The BUZ 101 SL is an N‑channel, enhancement‑mode, logic‑level SIPMOS power transistor designed for high‑current applications. It offers an avalanche‑rated structure and operates up to 175 °C.
Key specifications include a continuous drain current of 20 A at 25 °C, a drain‑source breakdown voltage of 55 V, and typical on‑resistance of 0.034 Ω. Thermal resistance values are 27 K/W (junction‑case) and 62 K/W (junction‑ambient), and the device features input and output capacitances of 120 pF and 215 pF respectively.
| Continuous drain current (Id) at 100 °C | 14 A |
|---|---|
| Operating temperature range | -55 °C to +175 °C |
